Grinding Mill Quality Control: From Incoming Material Inspection to Factory Acceptance Testing

In 2020, a grinding mill was shipped from a factory in Asia to a mineral processing plant in South America. The mill had passed a visual inspection, the documentation was complete, and the shipping container was sealed. When the mill arrived and the gearbox was uncrated, the receiving team found that the main drive shaft had a runout of roughly 0.15 millimeters — three times the acceptable tolerance. The shaft had been machined correctly at the factory but had shifted during ocean transit because the shipping cradle was designed for road transport loads, not for the sustained vibration and multi-axis movement of a six-week sea voyage.

The replacement shaft took nine weeks to manufacture and air-freight, and the plant lost roughly $240,000 in deferred production. The lesson was clear: quality control that stops at the factory gate is incomplete.

Quality control for a grinding mill spans the entire journey from raw material receipt at the factory to stable operation at the customer's site. Each stage has distinct risks, inspection points, and acceptance criteria. This article maps the full quality control chain so that buyers — whether visiting the factory or receiving equipment at their own site — know what to look for and when.

1. The Five Quality Stages, One Continuous Chain

Grinding mill quality is not a single attribute that can be verified at a single moment. It is the cumulative result of controls applied at five successive stages.

The first stage is incoming material inspection — verifying that the steel, castings, bearings, seals, and electrical components entering the factory meet the specified grades and standards. The second stage is in-process fabrication quality — the welding, machining, heat treatment, and assembly operations that transform raw materials into subassemblies. The third stage is component-level testing — individual verification of critical subsystems such as the gearbox, hydraulic system, and classifier rotor before they are integrated into the complete mill.

The fourth stage is factory acceptance testing — the comprehensive verification of the assembled mill against its design specifications, conducted at the manufacturer's facility before disassembly for shipping. The fifth and final stage is site commissioning — the verification that the mill, after transport and reassembly, performs to its guaranteed specifications under actual operating conditions.

A gap in quality control at any of these five stages creates a risk that may not become visible until the mill is in production — when the cost of correction is at its highest.

2. Incoming Material Inspection: The First Line of Defense

No amount of skilled machining or careful assembly can compensate for substandard raw materials. The steel plate used for the mill housing, the castings for the grinding table and roller hubs, the bearing steel for the main shaft supports — each must conform to its specified grade, verified before it enters the production flow.

The table below summarizes the key incoming materials for a grinding mill and the typical inspection methods and acceptance criteria.

At Guilin Hongcheng Mining Equipment Manufacturing Co., Ltd., incoming material inspection is conducted by a dedicated quality team of 20 to 50 inspectors. They verify material certificates, perform dimensional and non-destructive checks, and quarantine non-conforming material before it reaches the production floor. The inspection records for each major component — particularly castings and forgings — are compiled into a quality data package available for customer review during factory acceptance testing.

3. In-Process Fabrication and Assembly Quality

The fabrication and assembly stages introduce risks that incoming material inspection cannot catch: welding defects, machining errors, assembly misalignments, and improper fastener torque. Controlling these risks requires qualified procedures, in-process inspection, and documented hold points where work cannot proceed without quality verification.

Welding quality on the mill housing, base frame, and ductwork is governed by qualified welding procedure specifications that define the welding process, filler material, preheat temperature, and post-weld treatment for each joint configuration. Critical welds — particularly those on the mill body that carry structural loads or form gas-tight seals — receive non-destructive testing. For full-penetration joints, ultrasonic or radiographic testing covers 100 percent of the weld length; for fillet joints, at least 10 percent.

Machining precision on the gearbox housing bore, the grinding table mounting surface, and the classifier rotor shaft determines the alignment accuracy of the assembled mill. A table mounting surface machined with a flatness error of more than 0.05 millimeters per meter of diameter will cause uneven roller loading and accelerated wear. Hongcheng's machining quality control uses coordinate measuring machine verification on all critical dimensions, with results documented against the engineering drawings and reviewed before assembly clearance.

Assembly sequence and torque control are the final in-process checkpoints. The main bearing preload, the gearbox assembly clearances, the hydraulic cylinder mounting alignment — each has a specified tolerance range and a documented verification step. The company's assembly procedures include witness points where a quality inspector must sign off before the next stage can begin.

4. Component-Level Testing: Proving Subsystems in Isolation

Before the complete mill is assembled for factory acceptance testing, critical subsystems undergo standalone testing. This isolates problems to individual components, where they are faster and cheaper to correct than after full assembly.

The gearbox — often the single most expensive component in the mill drive system — undergoes a no-load run-in test on a dedicated test stand. It is driven at its rated speed for 4 to 8 hours while vibration sensors at each bearing position record acceleration levels and temperature sensors track bearing and oil temperatures. Acceptance criteria typically specify vibration velocity below 2.8 mm/s RMS at each measurement point and bearing temperature rise not exceeding 40 degrees Celsius above ambient.

The hydraulic system undergoes pressure testing at 1.25 to 1.5 times its maximum working pressure, held for at least 30 minutes and monitored for decay. The nitrogen accumulators — which provide the shock-absorbing cushion in the grinding pressure system — are pre-charged and leak-tested. The classifier rotor, if it is a variable-speed unit, is run through its full speed range while vibration and bearing temperatures are recorded.

These subsystem tests generate data that feeds into the factory acceptance test. A gearbox that passed its component test with borderline vibration readings, for example, will receive closer monitoring during the full mill test. HCM maintains component test records as part of the equipment's permanent quality file.

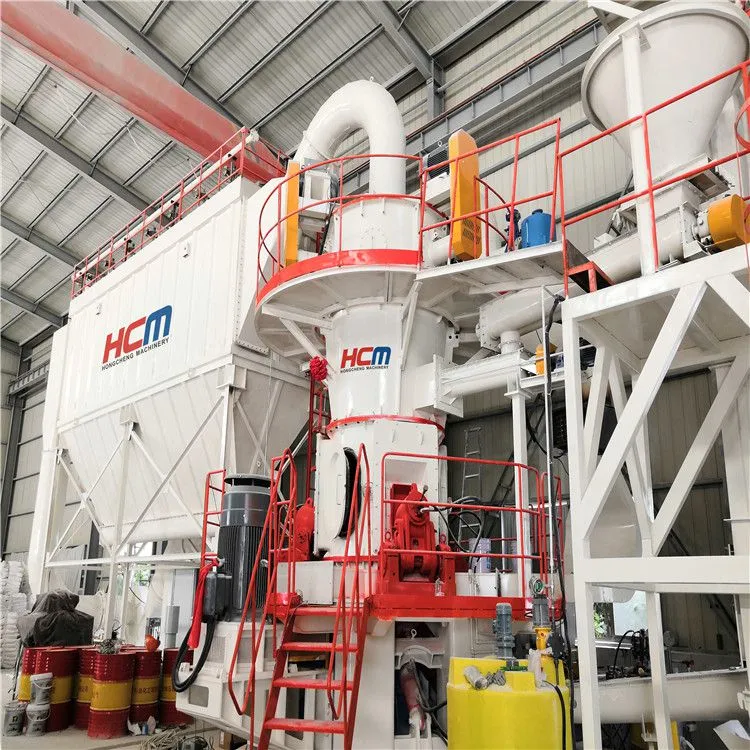

5. Factory Acceptance Testing: The Pre-Shipment Trial

Factory acceptance testing — commonly called FAT — is the single most important quality verification event before the mill leaves the manufacturer's facility. It is the buyer's opportunity to verify that the assembled equipment meets its specifications. Once the equipment is accepted and shipped, correcting defects found later becomes far more expensive and time-consuming.

A comprehensive FAT for a grinding mill includes at minimum six verification areas. The visual and dimensional inspection confirms that the assembled mill matches the approved drawings, that all specified components are present, and that surface finishes, paint, and nameplate data are correct. The no-load run test operates the mill drive system, classifier, hydraulic system, and lubrication system through their full operating ranges while recording vibration, temperature, and noise levels.

For mills shipped with a complete control system, the functional test verifies all control logic — start-up sequence, normal stop, emergency stop, alarm triggers, interlock functions — against the control philosophy document. The safety system verification confirms that emergency stops, pressure relief devices, temperature cutouts, and access door interlocks function as designed.

A load test — grinding actual material through the mill — is the definitive performance verification but is not always practical for large mills. When feasible, the manufacturer grinds a batch of material and measures throughput, product fineness, and power consumption against the guaranteed values. For mills too large for factory load testing, the performance guarantee is confirmed during site commissioning instead.

The FAT concludes with a documented punch list — items that must be corrected before shipment — and a formal acceptance certificate. Buyers are strongly advised to attend the FAT in person or to retain an independent inspector. The cost of travel and inspection is trivial compared to the cost of discovering a defect after the equipment has crossed an ocean.

6. Packaging, Shipping, and Site Receiving Inspection

The quality control chain does not end at the factory gate. The way a grinding mill is packaged and protected for shipping directly determines the condition in which it arrives at the customer's site. A correctly manufactured and tested mill can be damaged beyond repair by inadequate packaging.

Critical machined surfaces — bearing journals, gear tooth flanks, hydraulic cylinder rods — must be protected with VCI (volatile corrosion inhibitor) paper or heavy-grade rust-preventive coating and then wrapped in multiple layers of waterproof material. Rotating assemblies such as the classifier rotor and the grinding table should be secured against movement with shipping braces designed for the expected transport mode. For ocean freight, the bracing must resist not just vertical static loads but lateral and longitudinal dynamic loads from ship motion over a multi-week voyage.

Components that cannot tolerate moisture — electrical panels, instrumentation, bearing assemblies — should be packed in sealed containers with desiccant. In extreme climate conditions, climate-controlled containers may be warranted. The shipping documentation should include a packing list with photographs of each major crate, showing the contents and the protective measures applied.

Upon arrival at the site, a thorough receiving inspection should be conducted before signing the carrier's delivery receipt. Open each crate and visually inspect for shipping damage — cracked welds, bent brackets, scratched machined surfaces, water staining. Verify the packing list against the physical contents.

Any damage should be photographed, documented in writing on the delivery receipt, and reported immediately to the manufacturer and the shipping insurer. The window for making a shipping damage claim is typically 7 to 14 days from delivery — missing it means absorbing the repair cost yourself.

7. Site Commissioning: The Final Quality Gate

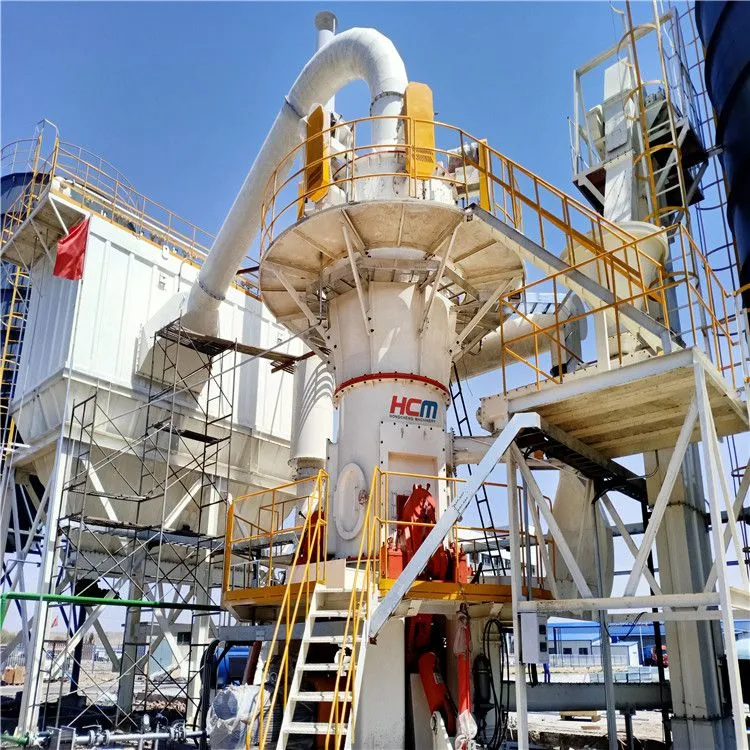

Site commissioning is where the theoretical performance verified at the factory meets the practical reality of the customer's installation. Even a mill that passed every factory test can fail to meet its performance guarantee if the installation, utility connections, or operational practices deviate from the design assumptions.

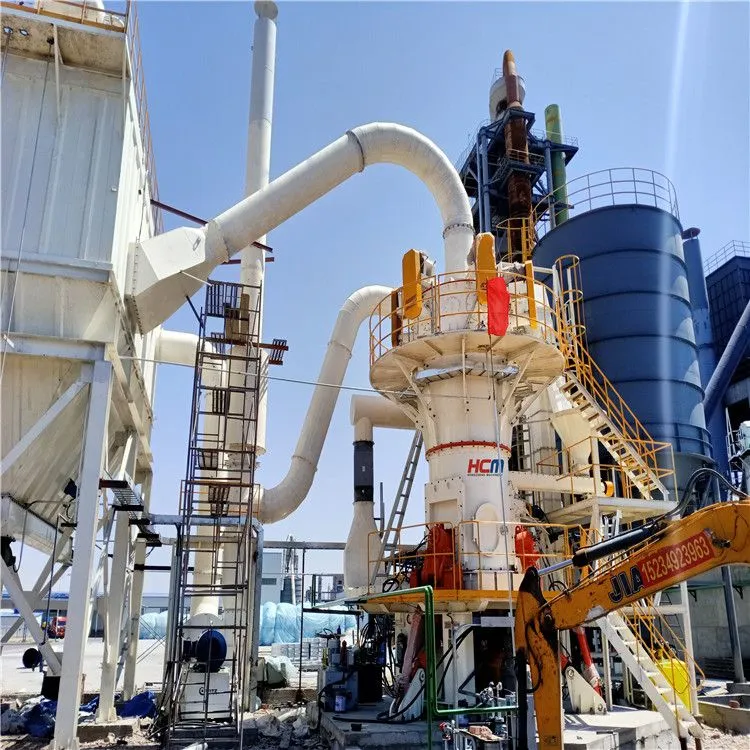

Cold commissioning checks all utility connections — power supply voltage and phase balance, water flow and pressure to cooling circuits, compressed air quality and pressure — and verifies that the mill is correctly aligned on its foundation. Anchor bolts must be torqued to specification and the grinding table leveled to within 0.05 millimeters per meter of diameter. The drive motor is bump-tested to confirm correct rotation direction, and each motor-driven subsystem is started individually and checked for abnormal noise, vibration, or temperature.

Hot commissioning introduces material to the mill at a reduced feed rate — typically 50 to 60 percent of rated capacity — and gradually increases over 24 to 48 hours while the mill reaches thermal equilibrium. Operators monitor grinding pressure, table differential pressure, product fineness, bearing temperatures, and vibration levels continuously. The mill is adjusted — classifier speed, grinding pressure, gas flow rate — to converge on the target operating parameters.

The performance test, typically running for 24 to 72 hours of continuous operation at rated capacity, is the formal verification against the contractual guarantee. Throughput, product fineness, and specific energy consumption are measured and compared to the guaranteed values. If the mill meets all criteria, the provisional acceptance certificate is signed and the warranty period begins. If it does not, the manufacturer is given a defined period — typically 30 to 60 days — to bring the mill into compliance.

Guilin Hongcheng Mining Equipment Manufacturing provides on-site commissioning supervision by experienced engineers for every mill installation. The team stays until stable operation at guaranteed performance is achieved, and the handover includes operator training on all control, maintenance, and troubleshooting procedures.

8. Building a Long-Term Quality Partnership

Quality control on a single mill purchase is important. Quality consistency across multiple purchases, over many years, is the foundation of a productive long-term relationship between a grinding mill user and their equipment supplier.

Maintaining a shared quality record for each mill — including as-built drawings, component serial numbers, material certificates, FAT report, commissioning data, and all subsequent maintenance and repair records — gives both sides a complete history to reference. This improves the speed and accuracy of diagnosing problems, planning upgrades, or specifying wear parts far into the machine's service life.

Periodic technical reviews — annual or biennial — between the user's maintenance team and the manufacturer's engineering team can identify emerging issues before they become failures. Wear part consumption trends, gradually increasing vibration levels, slowly rising bearing temperatures — these signals, reviewed by engineers who know the equipment's design margins, can trigger preventive interventions that avoid unplanned shutdowns.

For operations running multiple mills, sharing operational data across the fleet enables benchmarking. If one mill is consuming 15 percent more energy per ton than an identical sister unit, the data points to a configuration, maintenance, or feedstock issue that may not be apparent from the mill's own instrumentation. Hongcheng's technical service team can perform remote data analysis on mills equipped with modern PLC systems.

9. Frequently Asked Questions

9.1 Is factory acceptance testing worth the travel cost for the buyer?

For a capital expenditure of $150,000 to $500,000 or more on a complete grinding line, the cost of sending one or two engineers to the factory for a 2- to 3-day FAT is roughly 0.5 to 1.5 percent of the equipment value. The defects typically caught during an attended FAT — incorrect component specifications, surface finish issues, missing accessories, control logic errors — would cost 5 to 20 times more to correct after shipment. An attended FAT is one of the highest-return investments a buyer can make in the procurement process.

9.2 What should I look for during a factory visit before placing an order?

Look at the manufacturing floor, not just the conference room. Are incoming materials organized and identified with traceable lot numbers? Are welding stations equipped with qualified procedure sheets? Is there a calibration sticker on measuring instruments showing a current date?

Do machined components carry inspection stamps? A facility that demonstrates disciplined quality control on the parts being made today is far more likely to deliver a quality mill than one that only talks about it.

9.3 How do I verify that wear parts are made from the specified alloy?

Request a material certificate for each batch of wear parts — grinding rollers, table liners, classifier blades. The certificate should state the chemical composition, hardness, and any applicable standard. If verification is critical — for example, in an abrasive application where the difference between a 20 percent chromium and a 26 percent chromium alloy could mean 6,000 versus 12,000 hours of service life — retain a third-party inspection agency to witness the sampling and testing or to perform portable spectrometer verification on the finished parts before shipment.

9.4 What is the typical warranty period for a grinding mill?

Standard warranty for industrial grinding mills is typically 12 months from commissioning or 18 months from shipment, whichever comes first. The warranty covers defects in materials and workmanship — not normal wear, not damage from improper installation or operation, not consumables such as filter elements and lubricants. Some manufacturers offer extended warranty options for critical components: the gearbox main gears may carry a 24-month or even 36-month warranty reflecting the design life and testing rigor of that subsystem.

9.5 How can I monitor mill quality and condition during ongoing operation?

Modern grinding mills can be equipped with condition monitoring systems that track vibration spectra at bearing positions, lubricating oil particle counts and moisture content, hydraulic system pressures, and motor current signatures. Changes in these signals — a new vibration frequency appearing at the gear mesh frequency, a sudden increase in oil particle count — often provide weeks or months of advance warning before a failure. Retrofit monitoring packages are available for roughly $15,000 to $40,000 depending on the number of measurement points. The company recommends condition monitoring for any mill operating more than 5,000 hours per year, where the cost of unplanned downtime significantly exceeds the monitoring investment.
