HCM Raymond Mill Foundation and Piping Installation Guide — Avoid Vibration, Powder Leakage & Materi

    Up to 80% of frequent Raymond mill failures stem from non-standard installation, especially poor foundation construction and irregular piping setup. Many mineral processing factories place grinding machines directly on flat ground without proper foundation treatment. The unit may run for a short period, yet long-term operation brings severe vibration, loose anchor bolts and equipment displacement, shortening machine service life significantly.

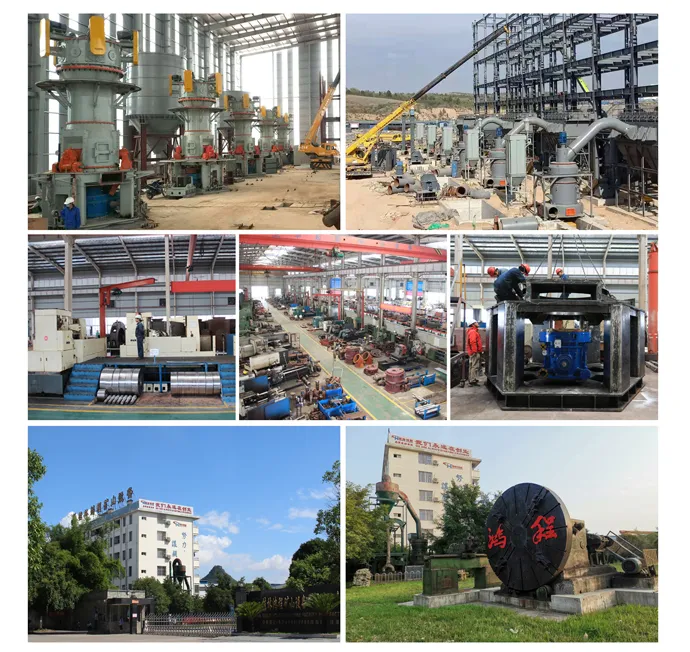

   As an ISO-qualified professional mineral grinding equipment manufacturer, HCM integrates R&D, manufacturing and global after-sales service for Raymond mill systems. HCM Raymond mill stands out for large throughput, low energy consumption, durable wear-resistant components, enclosed dust-free grinding system and complete technical service packages. We provide complete installation guidance, official technical drawings and on-site technical support for HCM Raymond mill series. Correct foundation and piping work helps operators reduce unexpected downtime, cut maintenance expense and keep stable output for limestone, calcite, dolomite and marble powder production lines. This article shares practical field-proven installation know-how from HCM senior installation engineers.

   Even premium HCM Raymond mill hardware cannot reach its designed performance without proper field installation. That is why standardized foundation and piping construction is critical for your powder plant profitability.

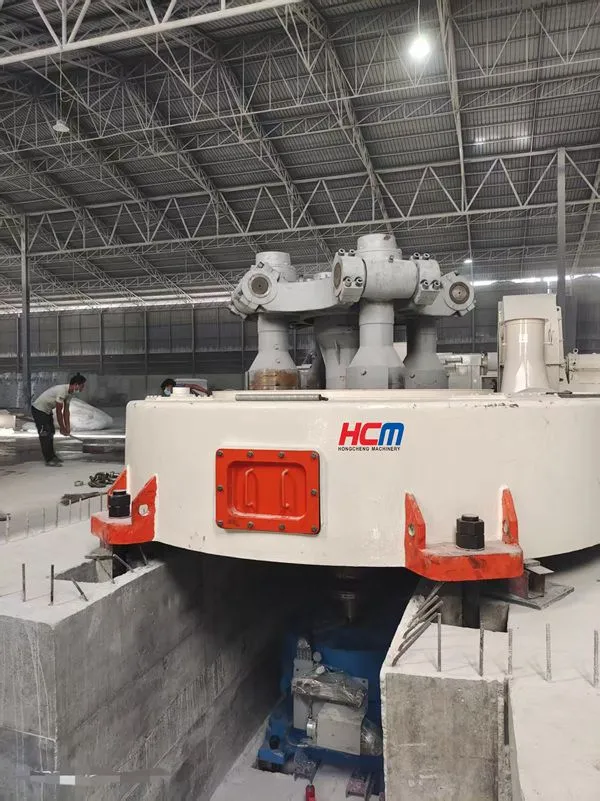

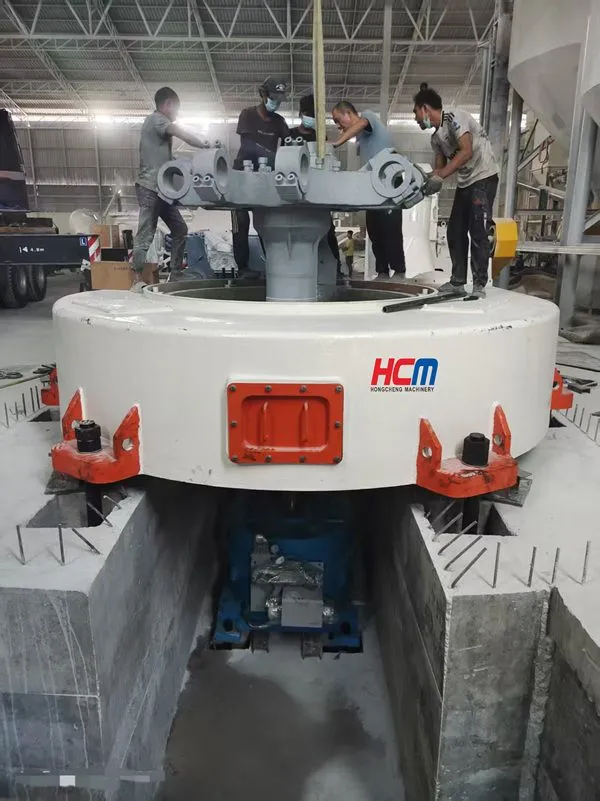

  Standardized Foundation Construction for HCM Raymond Mill

For heavy-duty grinding equipment, foundation stability and flatness directly determine 3-5 years of reliable operation. Cutting corners on civil work will create much higher repair costs later.

  Key Steps for Raymond Mill Foundation Installation

  1. Precise layout according to official HCM foundation drawing
  2. Concrete pouring and steel-plate embedding
  3. Multi-point level calibration for main machine base
  4. Shock-proof treatment and adequate curing before equipment arrival

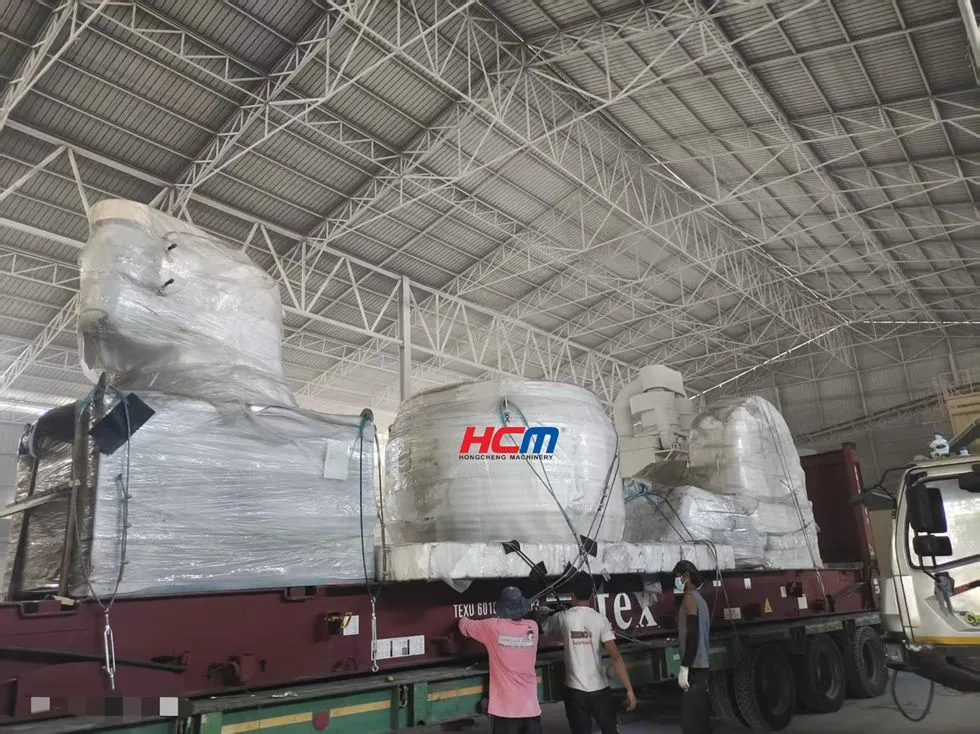

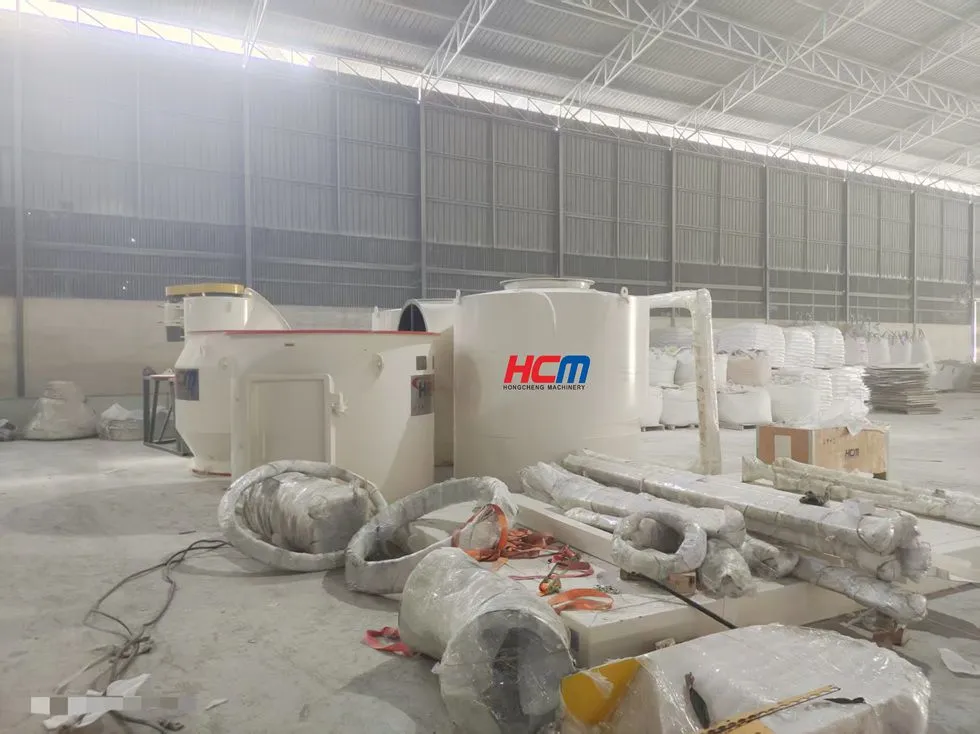

  Skipping these steps will trigger recurring vibration and bolt loosening. HCM supplies full-set foundation dimension drawings for every Raymond mill model, assisting customers’ civil engineering teams in site preparation before machine delivery.

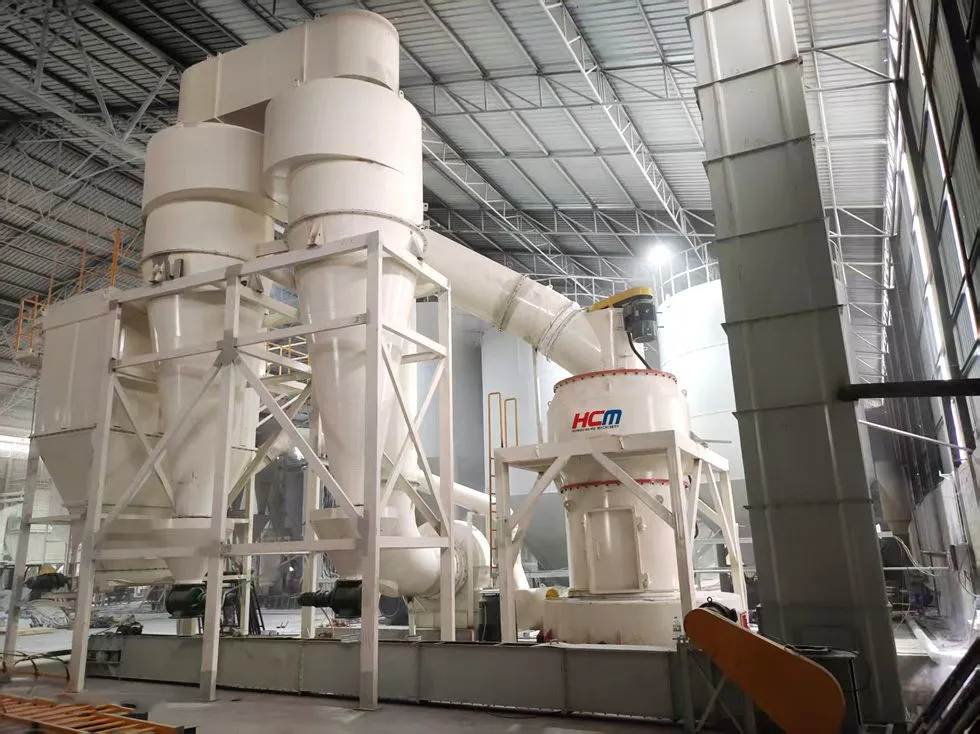

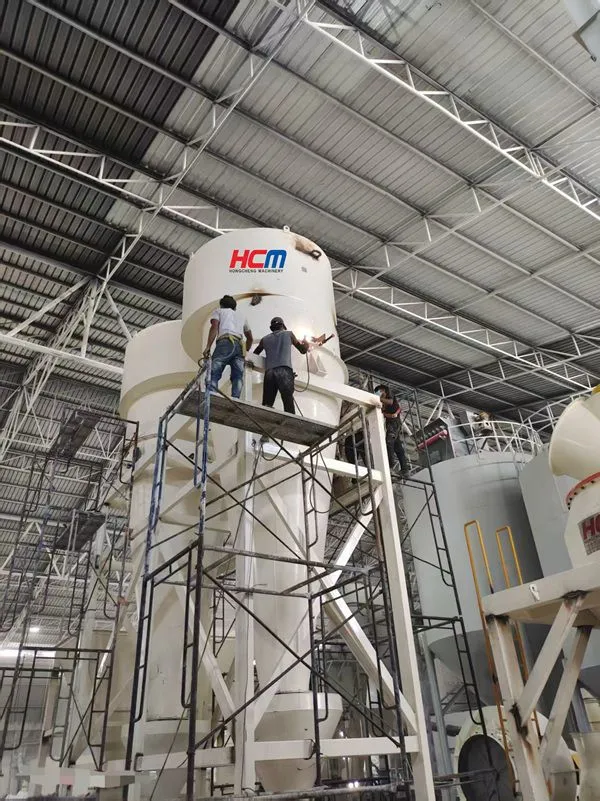

  Piping Installation Rules to Fix Powder Leakage, Dust Pollution and Blockage

  Powder leakage, heavy workshop dust and frequent duct blockage rank among the most annoying pain points for Raymond mill operators. In most cases, these troubles are not caused by equipment quality defects but unreasonable piping assembly.

  Follow HCM’s field-tested piping specifications:

  - Fit sealing gaskets on every pipe flange joint to eliminate air-leak gaps and powder escape

  - Minimize sharp right-angle bends on air ducts. Too many right-angle turns increase airflow resistance and raise material-blockage risks
  - Secure all pipeline segments firmly. Vibration-caused shaking will loosen connections during continuous running
  - Keep inner duct surface smooth to avoid powder buildup.

  HCM factory-optimized pipeline design already reduces blockage risks at the product development stage. However, on-site assembly errors will neutralize these original design benefits. Even well-manufactured HCM Raymond mill cannot deliver expected performance if ductwork is poorly assembled. Proper piping preserves negative-pressure balance inside the whole grinding circulating system.

  What Happens If Foundation or Piping Installation Is Poorly Done

  - Heavy frame vibration, fast-wearing grinding roller and ring
  - Bolt loosening, position shift of main unit
  - Continuous powder leakage, bad on-site working environment
  - Frequent pipe blockage, dropping hourly output
  - More unplanned stops and higher operating cost

   Master these two core installation modules (foundation + piping), plant operators can eliminate most avoidable daily failures and maintain long-term efficient running of your HCM Raymond mill.

   Need HCM official Raymond mill foundation dimension drawings or professional installation technical support? Contact our engineering team for free consultation for your mineral powder-making project. HCM offers customized grinding solutions for limestone, calcite, dolomite, marble and other non-metallic mineral raw materials.
