Why HC Series Pendulum Mill Solves Severe Vibration Issues of Traditional Raymond Mill

  HCM HC series pendulum mill optimizes traditional Raymond mill structure, cast integrated base, balanced rotary system, ultra-low vibration, avoid roller shaft breakage, bearing damage & foundation crack, lower maintenance cost & eco-friendly production

 1. Critical Pain Point: Severe Vibration Plagues Ordinary Raymond Mill Operators

  When running a standard Raymond mill, countless mineral processing plant owners face a devastating trouble: violent vibration right after startup. This common fault triggers a chain of costly failures:

  · Frequent grinding roller shaft fracture & premature bearing burnout

  · Cracked mill main base, loose anchor bolts

  · Even concrete floor fissures under long-term shaking Unstable operation forces unplanned shutdowns, cuts hourly output, raises spare parts expense, and disrupts whole production schedules completely.

  It clearly proves that stable running performance is the core judging standard for premium Raymond mill equipment. As a professional Raymond mill manufacturer, Guilin HCM Machinery spent decades upgrading   traditional pendulum mill frameworks and launched the HC Series Pendulum Grinding Mill—a revolutionary upgraded Raymond mill with breakthrough stability verified by global market feedback. HCM HC mill consistently delivers steady operation and sustainable profit for powder processing clients worldwide.

  2. Four Core Structural Upgrades of HC Pendulum Mill for Ultra-Low Vibration

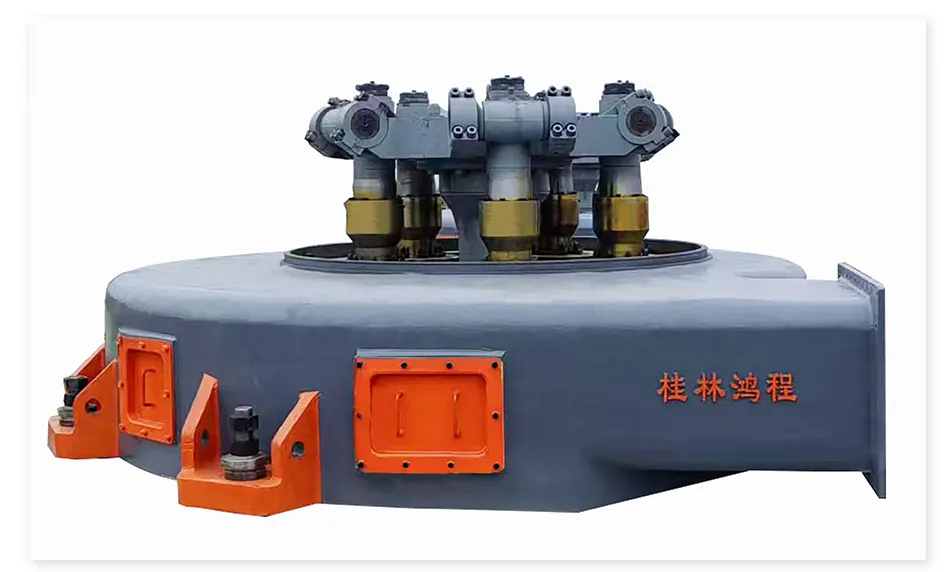

  2.1 One-Piece Cast Base (Core Upgrade vs Welded Split Base of Conventional Raymond Mill)

  Most cheap standard Raymond mills adopt split welded base frames, which deform easily under long grinding impact and amplify vibration sharply. HCM HC pendulum mill applies integral casting base as standard configuration:

  · Monolithic forming eliminates assembly gaps and structural weak points

  · Ultra-high casting precision and thickened load-bearing structure absorb shock efficiently

· Zero deformation under full-load long-term operation, foundational stability locked from production source Though integral casting base requires complex craftsmanship and stricter machining tolerance, it erases worries of base cracking for long-term continuous milling work.

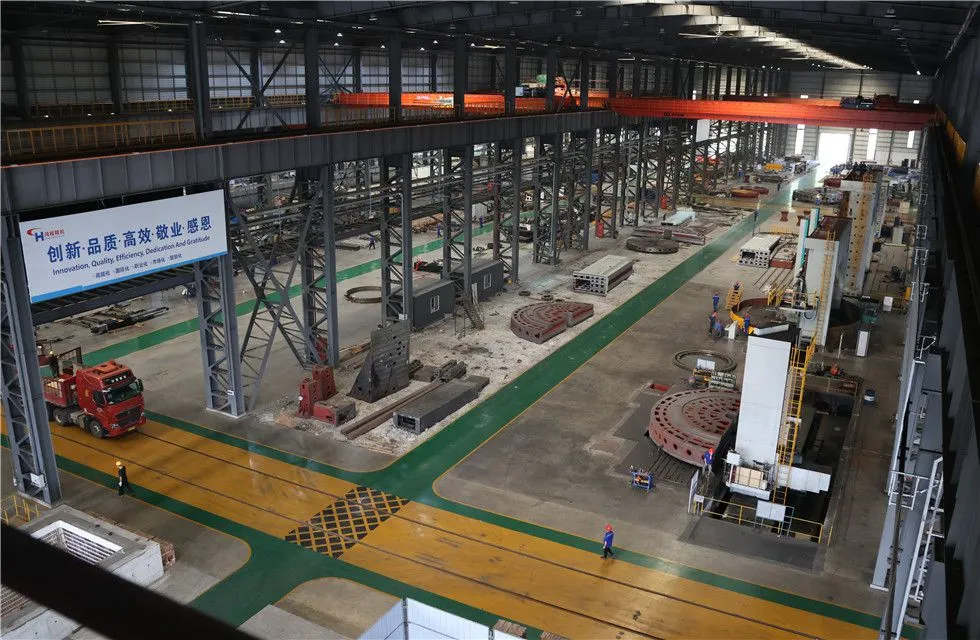

  2.2 High-Precision Full-Part Manufacturing & Traceable Quality Control

  Every spare part of the HC upgraded Raymond mill follows micron-level precision production standards, with full-process quality tracking records:

  · CNC machined roller, ring, plum frame and transmission components

  · Tight assembly tolerance eliminates internal friction and unbalanced shaking during rotation Smooth, synchronized component operation fundamentally reduces abnormal vibration and mechanical wear compared to generic Raymond roller mills.

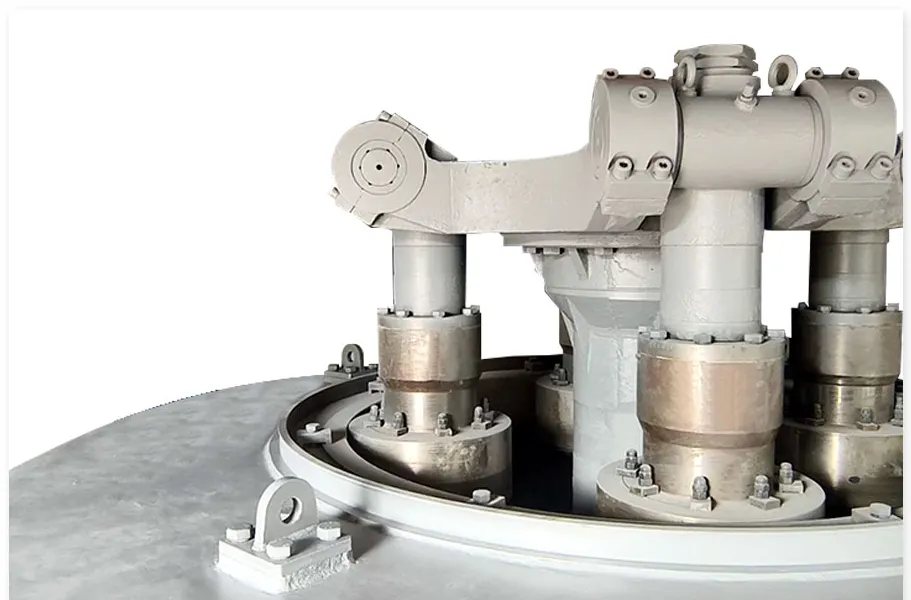

  2.3 Precisely Balanced Plum Blossom Frame Assembly

  The plum rack (star frame) is the heart rotary component of any pendulum Raymond mill. HCM carries out dynamic balance calibration for every HC series plum frame before delivery: Offset weight errors are corrected strictly to eliminate eccentric rotation force, stabilizing the whole rotary system during high-speed grinding operation.

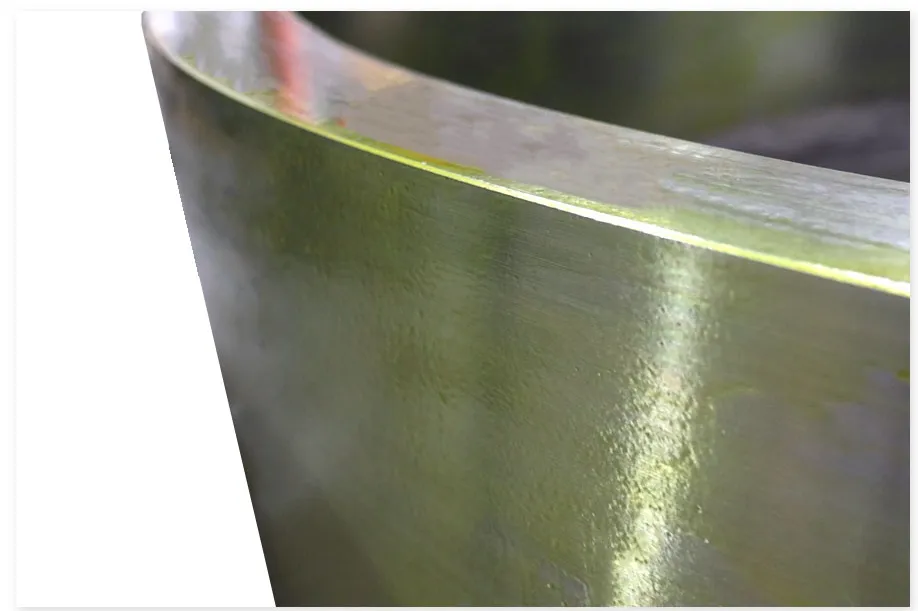

  2.4 Counterweight Optimized Grinding Roller Assembly

  Grinding roller units are fully counterweight adjusted in factory: Minimize centrifugal offset during circular grinding motion, the biggest vibration source of old-type Raymond mills. Coordinated balanced roller + balanced plum rack forms a dual stable rotary system, slashing overall machine vibration amplitude dramatically.

 3. Dual Core Value of Stable HC Pendulum Mill: Economic Benefit & Environmental Protection

  3.1 Higher Economic Returns & Lower Maintenance Cost

  Ultra-low vibration brings tangible profit boosts for mineral powder factories:

  1. Prevent main base crack, roller shaft breakage, anchor bolt loosening and bearing failure—cut spare parts replacement frequency and repair labor cost greatly

  2. Non-stop stable running lifts continuous production time, raises hourly output capacity (HC mill yield is 2.5–4 times higher than 5R traditional Raymond mill)

  3. Less downtime equals higher order fulfillment rate and larger net profit margin for limestone, barite, calcite, dolomite, kaolin, gypsum processing lines

  3.2 Better Eco-Friendly Workshop & Operator Health Protection

  Stable operation upgrades environmental performance obviously:

  1. Vibration reduction lowers running noise greatly, avoids noise pollution and protects workers’ hearing health

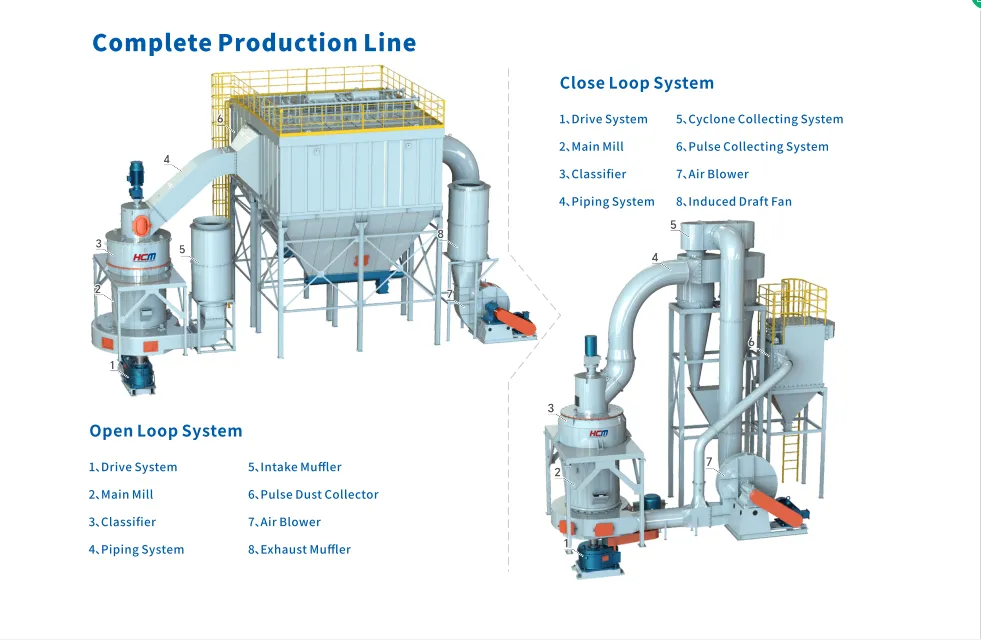

  2. No shaking-induced powder leakage or dust blowing; closed dust collection system works perfectly with steady mill body, keeps factory floor clean and meets global environmental emission standards

  4. Why Choose HCM HC Series as Your Reliable Upgraded Raymond Mill

  As a top China grinding mill brand, HCM (Guilin Hongcheng) focuses on pendulum mill R&D and manufacturing for over 30 years:

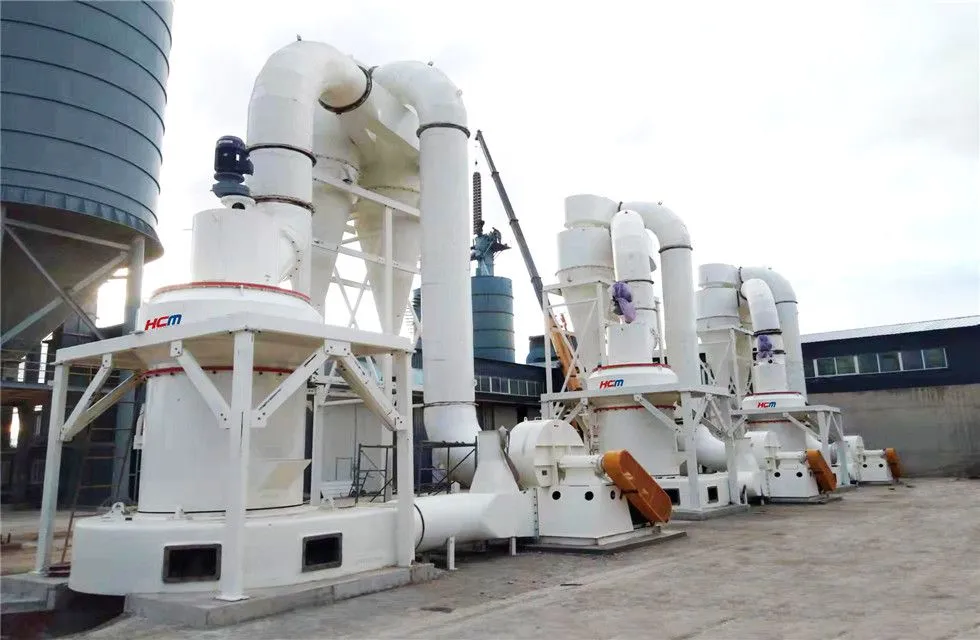

  · HC1000, HC1290, HC1700, HC2300, HC3000 full model lineup covers small, medium and large-scale powder production lines

  · Suitable for grinding Mohs hardness ≤7 non-metallic minerals: limestone, calcite, barite, talc, feldspar, bentonite, phosphate ore, coal powder etc.

  · Global after-sales service, complete technical drawing, installation guide and on-site commissioning support

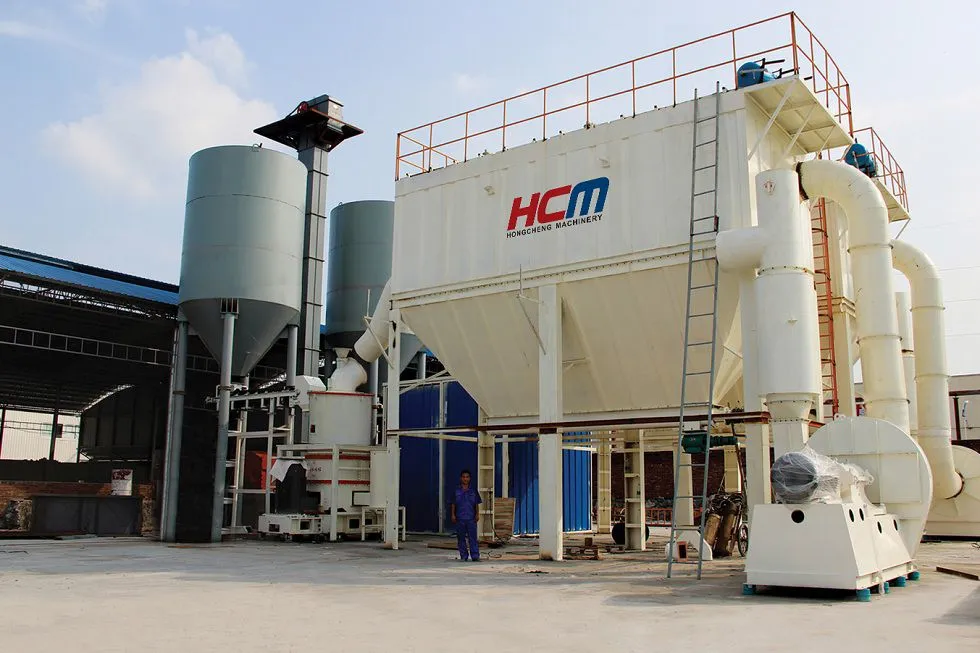

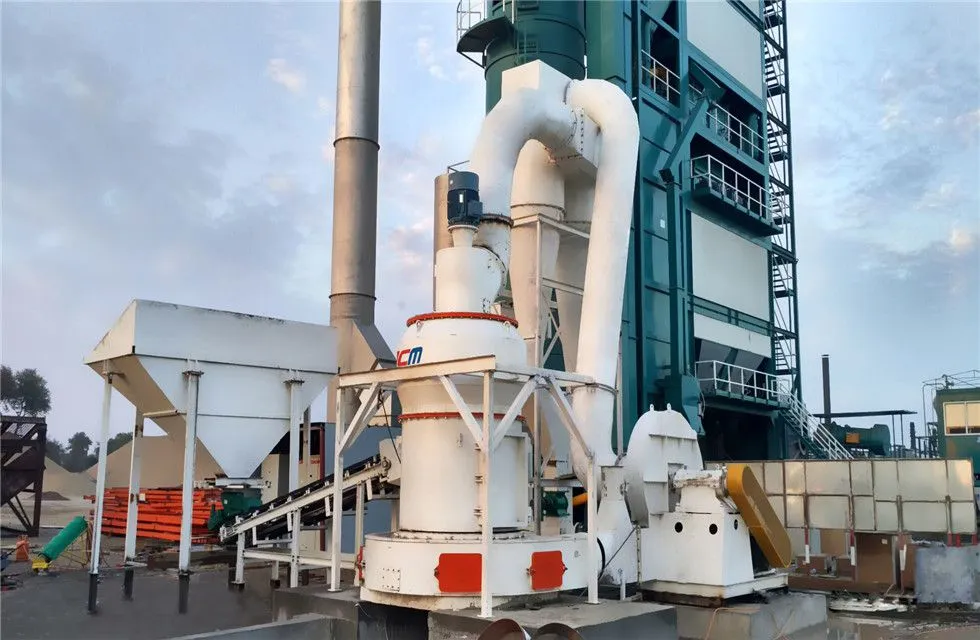

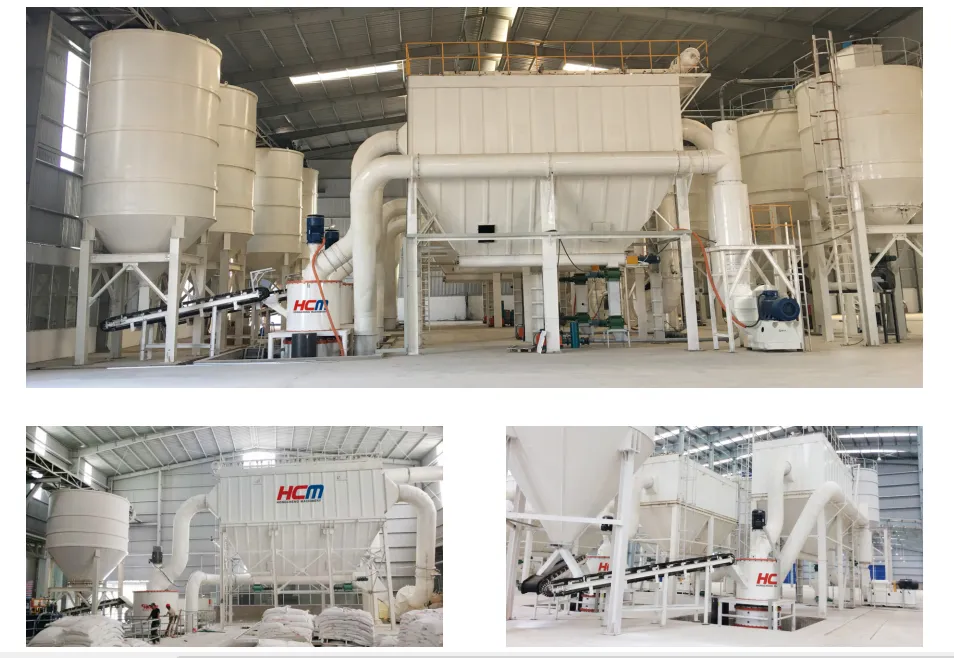

  · Decades of real project cases across Southeast Asia, Africa, Middle East, South America with zero major vibration failure feedback

  Severe vibration is the fatal defect limiting traditional Raymond mill’s service life and productivity. If you are tired of frequent breakdowns, high repair bills and unstable output from ordinary Raymond roller mills, HCM HC series stable pendulum mill is your ideal replacement solution. Built with integral cast base, balanced rotary system and high-precision components, HC mill delivers long-term steady running, maximizes profit and realizes green, trouble-free mineral powder manufacturing.
